AUTHOR : kosafilter FROM : www.kosafilter.com ADD TIME : 2026-09-04 13:30 HITS : BELONG : COMPANY NEWS 20X20X1 Inch Merv8 Paper Frame Primary Efficiency Panel Air Filter for HVAC Equipment Clapboard: withoutClapboard MediumMaterial: NonwovenFabric Efficiency: G3-M5 FiltrationGrade: PreFilter Type: P

KOSA Company News 1759 product, KOSA
AUTHOR : kosafilter　FROM : www.kosafilter.comADD TIME : 2026-09-04 13:30　BELONG : COMPANY NEWS
  • 20X20X1 Inch Merv8 Paper Frame Primary Efficiency Panel Air Filter for HVAC Equipment

    Clapboard:withoutClapboardMediumMaterial:NonwovenFabricEfficiency:G3-M5FiltrationGrade:PreFilterType:PanelFilterStracture:FlatStructure

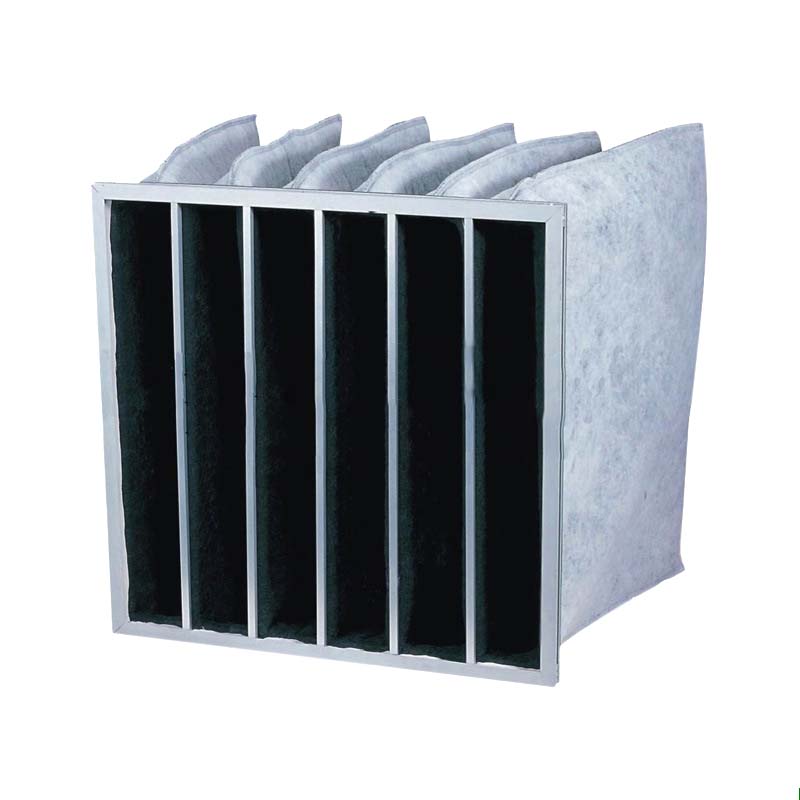

    Air Purifier Black Pocket Type Activated Carbon Air Filter For Ventilation System Photos 1655195881

    Model NO.
    HPP
    • Frame
    Galvanized Steel Sheet, Stainless Steel Sheet,
    Guard Mesh
    Galvanized, Aluminum Alloy etc
    Temperature
    Maximum 90°c in Continuous Service
    Transport Package
    Carbon and Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai, China
    HS Code
    8421999090

    Activated Carbon Flat Air Purifing Metal Filter Photos & Pictures 1655185441

    Product Description


    Advantages
    Filtration efficiency rating from G3 to M5, traps 40~60% of ≥5.0μm particles.
    Use special low-resistance and high-throughput non-woven fabrics as the filter material, with high dust-holding capacity.
    There are cardboard, galvanized steel sheet, stainless steel sheet, aluminum alloy or plastic frame.
    Meet EN779:2012.

    Material Instructions
    Media: Non-woven fabrics with pleated mesh supporter or metal pillar.
    Frame: Cardboard, galvanized steel sheet, stainless steel sheet, aluminum alloy or plastic.
    Temperature: Maximum 90°C in continuous service.

    Application
    Suitable as pre-filter used to protect high-performance filters, and filtration of fresh air in clean room ventilation system and airport, subway, shopping malls and other places of public services.

    Primary Filter: G3 to M5

    Structure Drawings
    Common Specifications
    ModelDimensionsRated Air Flow (m3/h)Initial Pressure Drop (Pa)Media Area
    (m2)    		Pitch
    (mm)
    W×H×D (mm)StandardHigh CapacityStandardHigh Capacity
    HPP-12×24×1290×595×23600120020630.4019
    HPP-20×14×1493×341×2355011000.39
    HPP-20×15×1493×366×2362512500.43
    HPP-20×16×1493×391×2365013000.45
    HPP-20×20×1493×493×2380016000.56
    HPP-20×24×1493×595×2395019000.65
    HPP-24×24×1595×595×23120024000.83
    HPP-25×14×1620×341×2370014000.48
    HPP-25×16×1620×391×2380016000.57
    HPP-25×20×1620×493×23100020000.71
    HPP-14×20×2341×493×46850170020700.7720
    HPP-20×12×2493×290×4670014000.70
    HPP-20×16×2493×391×4690018000.94
    HPP-20×18×2493×442×46105021001.01
    HPP-20×20×2493×493×46120024001.12
    HPP-24×12×2595×290×4685017000.79
    HPP-24×18×2595×442×46130026001.24
    HPP-24×20×2595×493×46140028001.36
    HPP-24×24×2595×595×46170034001.64
    HPP-25×16×2620×391×46120024001.18
    HPP-25×18×2620×442×46135027001.27
    HPP-25×20×2620×493×46150030001.42
    HPP-20×16×4493×391×96950190018681.4528
    HPP-20×20×4493×493×96120024001.73
    HPP-24×12×4595×290×9685017001.28
    HPP-24×18×4595×442×96130026001.91
    HPP-24×20×4595×493×96140028002.09
    HPP-24×24×4595×595×96170034002.55
    HPP-25×16×4620×391×96120024001.82
    HPP-25×20×4620×493×96150030002.18
    HPP-25×29×4620×721×96215043003.27
    KOSAFILTER makes various of other models' HPP filter not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.


    Air Conditioner Fiberglass Pocket Filters For Ventilation Systems Photos 1655199107

    Frequently Asked Questions

    What is the model number of this product?

    This product uses model no.: HPP.

    What frame material options are available?

    This product uses frame: Galvanized Steel Sheet, Stainless Steel Sheet,.

    What service temperature can it withstand?

    This product uses temperature: Maximum 90°c in Continuous Service.
