What Is Liquid Filtration & Filter Bags?
Liquid filtration removes suspended solids from water, chemicals, paints and food streams using filter bags and cartridges, protecting equipment and polishing product to a specified micron grade.
Key Takeaways
- Liquid filter bags span 1-2000 micron, the widest practical range for process fluids.
- Ring styles must match the housing for a leak-free seal.
- PP, PE, nylon and PTFE are chosen by chemical compatibility.
- A graded pre-filter ahead of a fine bag cuts total cost.
Specifications & Comparison
| Micron rating | 1 - 2000 um |
|---|
| Media | Polypropylene, Polyester, Nylon, PTFE |
|---|
| Ring | Snap ring, spring, plastic collar, flange |
|---|
| Temperature | PP <=90 C - PE <=130 C - PTFE <=260 C |
|---|
| Housing | Size 1 / Size 2 bag housings |
|---|
How to Select the Right Liquid Filtration & Filter Bags
- Define fluid, temperature and compatibility to pick media.
- Choose micron grade from the particle size to remove.
- Match ring style to the housing.
- Add a coarser pre-filter to protect the fine bag.
Typical Applications
- Paints, inks and coatings
- Chemicals and solvents
- Process and wastewater
- Food, beverage and edible oil
Frequently Asked Questions
What micron liquid bag should I use?
1-5 um for polishing, 50-200 um for general cleanup, up to 2000 um for coarse strainers.
Which media is chemically compatible?
Polypropylene and PTFE resist most chemicals; verify against the MSDS.
Materials & Chemistry

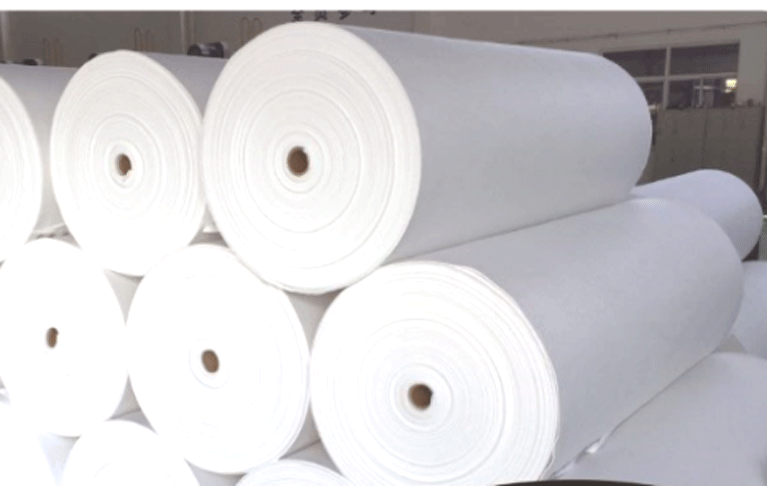

- Polyester (PET) - the general-duty synthetic, rated to about 130 C, the default for ambient dust and fume.

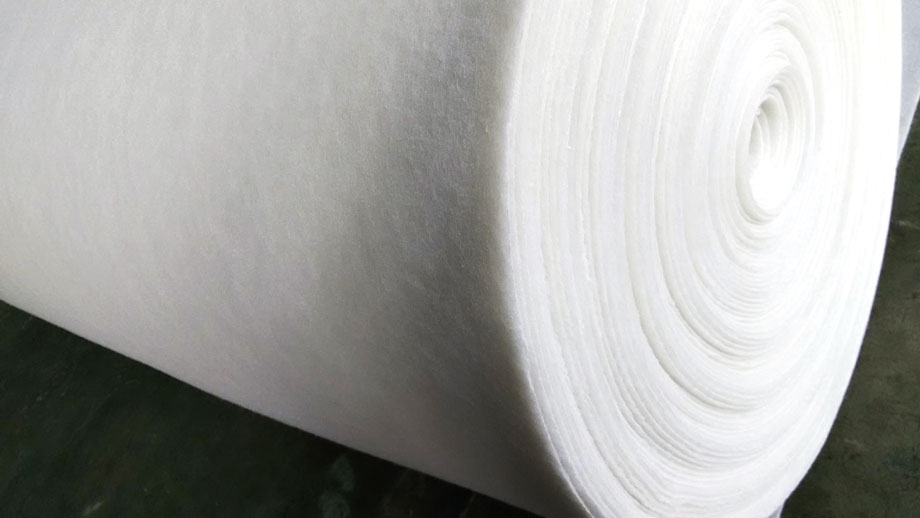

- Polypropylene (PP) - acid- and moisture-resistant, used to about 90 C in wet or corrosive dust.
- Fiberglass - woven or needled glass fibre for continuous 260 C service on kilns, boilers and incinerators.
- Polytetrafluoroethylene (PTFE) - the most chemically inert media, 260 C, often with a porous membrane laminate.
- Aramid (Nomex) - a high-temperature organic fibre to about 204 C for hot, non-alkali dust streams.
- Polyphenylene sulfide (PPS / Ryton) - alkali- and sulphur-resistant to 190 C for cement and waste-incineration gas.
Standards & Compliance
- ISO 16890 - the current air-filter classification by ePM1, ePM2.5 and ePM10 capture efficiency.
- EN 779 - the legacy grade system (G4, F7, F9) still shown on many equipment datasheets.
- ASHRAE 52.2 - the North American MERV rating method for HVAC filters.
- OSHA 29 CFR 1910.94 - general ventilation and dust-control requirements for workplaces.
- ATEX 2014/34/EU - equipment rules for combustible-dust and explosive-atmosphere areas.
Buyer's Guide & Common Mistakes
- Match media to peak gas temperature with margin; choose finish for the dust (membrane for fine or sticky, anti-static in ATEX zones).
- Size the bag to the tube sheet exactly - wrong diameter or length is the top cause of premature bag failure.
- Watch the air-to-cloth ratio; too high a face velocity blinds the media and raises pressure drop fast.
- Pre-filter bulk solids ahead of the final fine bag to extend life and cut replacement cost.
Authoritative References
Related Products & Terminology
- Pulse-jet baghouse
- Reverse-air collector
- Cartridge dust collector
- Cyclone pre-filter
- Electrostatic precipitator
- Pleated filter element
- Snap-band collar
- Venturi booster
- Solenoid pulse valve
- Differential-pressure gauge
- Air-to-cloth ratio
- Cage wire
- Anti-static ground
- PTFE membrane laminate
- Oil-water repellent finish
Engineering & Evaluation Notes
In a pulse-jet baghouse, short compressed-air pulses travel down a venturi to snap the dust cake off the cloth; reverse-air and shake-deflate designs use gentler, continuous cleaning suited to woven media. Sizing the air-to-cloth ratio and tracking differential pressure protect filtration efficiency and cut lifecycle cost, while correct cage and venturi geometry keep the bag from abrading or collapsing between cleaning cycles.
