  • High Temperature Air Filter with Aluminum Foil Separator

    Clapboard:withClapboardFilterNumber:1MediumMaterial:FiberglassEfficiency:H14FiltrationGrade:HEPAFilterType:SeparatorFilter

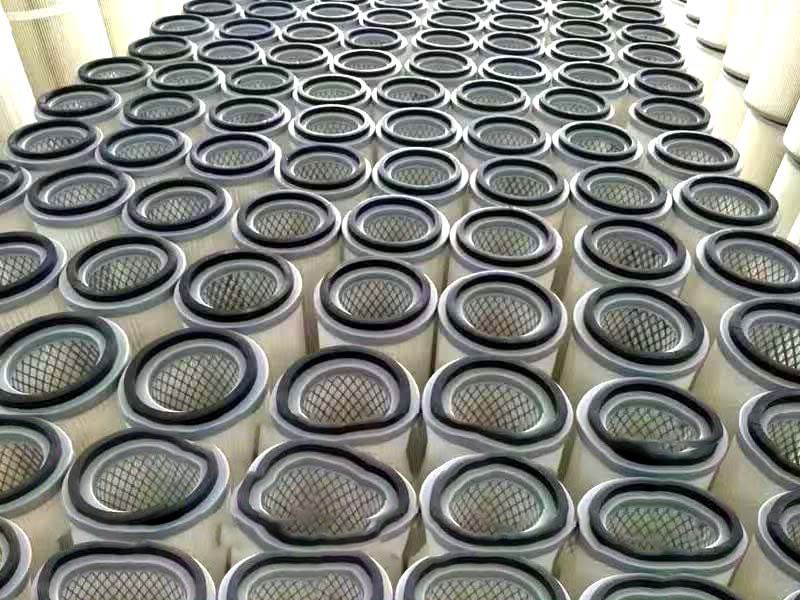

    Air Filter Cartridge (Gas Turbine Equipment) Photos & Pictures 1655256458

    Model NO.
    HTH
    • Media
    Ultra-Fine Fiberglass Filter Paper
    Frame
    Galvanized
    Structure
    Box Type
    Separator
    Aluminum
    Sealant
    Polyurethane
    Temperature
    90°c
    Transport Package
    Carton/Wooden Case
    Specification
    610x610x292mm
    Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421999090
    Production Capacity
    5000PCS

    Ahu Deep Pleated Paper Separator Air Intake Filter Hepa Photos & Pictures 1655174980

    Product Description


    Application
    Suitable for electronics, bio pharmaceutical industry, hospital and the occasions require high cleanliness terminal filtration
    Advantages
    Filter efficiency ranges from F8 to H14.
    High eff. H13: traps 99.99% or higher of 0.3μm particles.
      Sub-high eff. E10: traps 95% or higher of 0.5μm particles.
      Medium eff. F8: traps 80% or higher of 1.0μm particles.
    Adopt special folding machine for manufacturing.
    Use special fiberglass filter paper as the filter media, good stability of filtration efficiency.
    Use special aluminum foil or offset paper as separator.
    Double side retainers, protect the filter material, with
    good strength.
    Each filter is tested according to EN1822:2009.
    Material Instructions
    Media: Ultra-fine fiberglass filter paper.
    Frame: Aluminum alloy, wood, galvanized or stainless steel.
    Structure: Box type, single header or double flanges.
    Separator: Aluminum or paper foil.
    Sealant: Polyurethane or temperature resistant gel.
    Temperature: 90°C-350°C in continuous service.
    Structure Drawings



    Common Specifications
    ModelDimensionsMedia Area (m2)Rated Air Flow (m3/h)Initial Pressure Drop (Pa)
    W×H×D (mm)
    Standard
    High Capacity
    Standard
    High Capacity    		F8E10H13H14
    HTH230230×230×1100.81.4110180≤85≤175≤235≤250
    HTH320320×320×2204.16.1350525
    HTH484/10484×484×2209.614.410001500
    HTH484/15726×484×22014.621.915002250
    HTH484/20968×484×22019.529.220003000
    HTH630/05315×630×2208.112.17501200
    HTH630/10630×630×22016.524.715002250
    HTH630/15945×630×22024.937.322003300
    HTH630/201260×630×22033.450.130004500
    HTH610/03305×305×1502.43.6250375
    HTH610/05305×610×1505.07.5500750
    HTH610/10610×610×15010.215.310001500
    HTH610/15915×610×15015.423.115002250
    HTH610/201220×610×15020.630.920003000
    HTH610/05X305×610×29210.115.110001500
    HTH610/10X610×610×29220.931.320003000

    KOSAFILTER makes various of other models' HTH filter which are not listed in above table. Please consult with us if you need.
    The Initial Pressure Drop and Rated Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.







    Air Condition Fiber Glass Air Filter Bag Photos & 1655271578

    Frequently Asked Questions

    What is the model number of this product?

    This product uses model no.: HTH.

    What frame material options are available?

    This product uses frame: Galvanized.

    What service temperature can it withstand?

    This product uses temperature: 90°c.
