  • Customized HEPA Air Filters Unit Gel Seal Mini-Pleat Panel Filter

    Clapboard:withoutClapboardFilterNumber:1MediumMaterial:FiberglassEfficiency:H14FiltrationGrade:HEPAFilterType:ReplaceableHEPABox

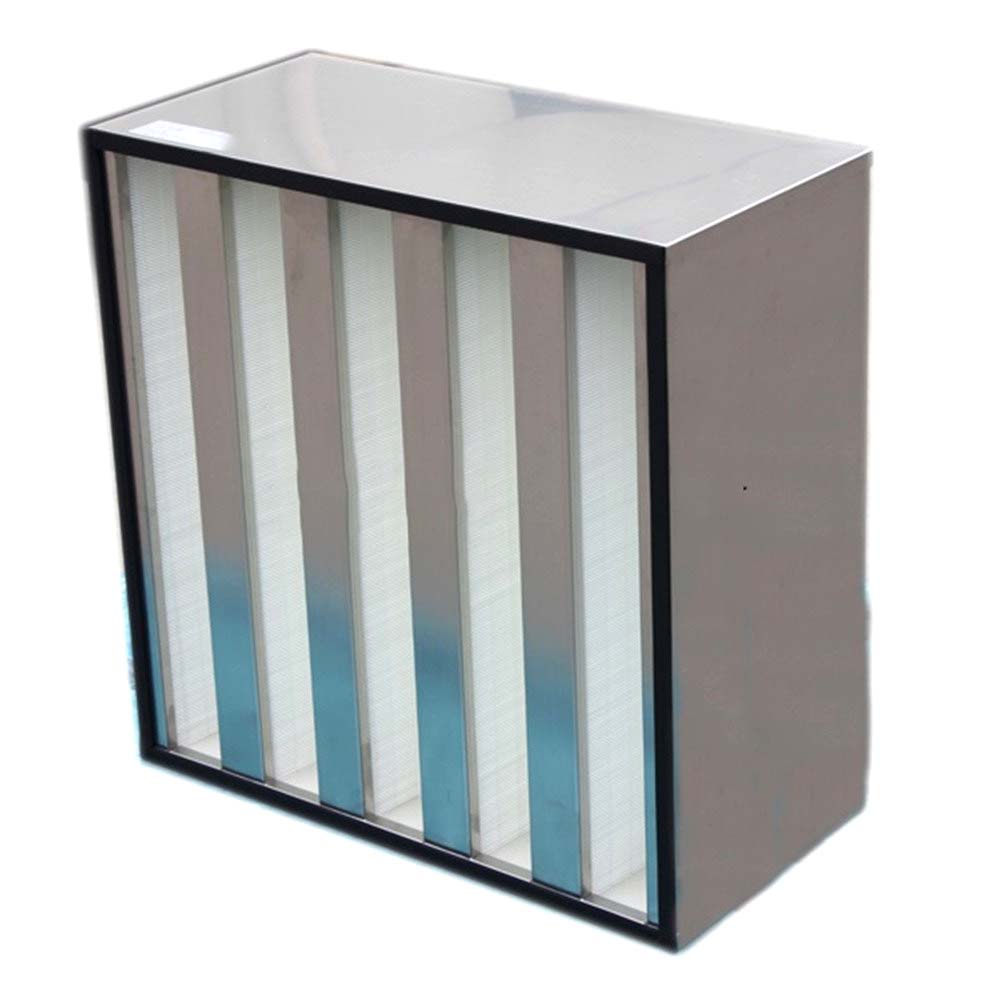

    Air Filter In Mid And High Efficiency V Cell Type Photos & Pictures 1655261900

    Model NO.
    HMG
    • Filter Efficiency Ranges
    H14 to U17
    Frame
    Anodized Aluminum Al
    Structure
    L-Type Side Gel Seal, Y-Type Top Gel Seal
    Media
    Ultra-Fine Fiberglass Filter Paper
    Separator
    Hot-Melt Glue
    Sealant
    Polyurethane
    Temperature
    Maximum 90°c in Continuous Servic
    Transport Package
    Carton /Wooden Case
    Specification
    570x570x180mm
    Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421999090
    Production Capacity
    500PCS

    Air Filter In Deep Mini Pleat 1655185987

    Product Description

    Production Introduction

    HMG gel seal mini-pleat panel filter  is mainly used for capture dust and all kinds of suspended solids with diameter below 0.3μm. as the final for all kinds of filtration system. It is widely used in air condition terminal air supply place of dust-proof room of Bio-Pharma, medical care, food processing, optical electron, LCD manufacturing, precision instrument, beveraqe and food. PCB printing and other industries. HEPA and ULPA are both applicable for clean-room end.
    HMG  has the feature of high efficiency, low resistance, large dust holding and etc, can meet customer' s requirements for all kinds of applications farthest, The size of HMG can be customized.
    HMG filter was designed, produced and tested according to EN 1822 standard strictly. EN 1822 is the latest and most complete testing standard by laser scanning based on MPPS (MPPS is normally between 0.1-0.25um)
    Accord with GB/T 13554-2008" HEPA filter", GB/T 14295-2008" filter", GB/T 6165-2008" HEPA filter performance testing method, efficiency and resistance" etc also acoord with American IEST-RP1.4.


    Advantage

    Filter efficiency ranges from H14 to U17.
    Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
    Use special ultra-fine fiberglass paper as the filter media, good stability of filtration efficiency.
    Double side retainers, protect the filter material, good strength.
    Light in weight, compact in structure.
    Each ULPA/HEPA filter is tested according to EN1822:2009.


    Material Instructions

    Structure: L-type side gel seal, Y-type top gel seal.
    Media: Ultra-fine fiberglass filter paper.
    Frame: Anodized aluminum alloy.
    Separator: Hot-melt glue.
    Sealant: Polyurethane.
    Temperature: Maximum 90°C in continuous service.

    Suitable for electronics, pharmaceutical industry, clean room, FFU, laminar flow devices and the occasions require ultra-high cleanliness.

    Common Specifications

    ModelDimensionsMedia Area
    (m2)    		Rated Air Flow
    (m3/h)    		Initial Pressure Drop
    (Pa)
    W×H×D (mm)
    HMG610/10-70L610×610×709.5800≤220
    HMG610/03-93L305×305×932.7250
    HMG610/05-93L305×610×935.9500
    HMG610/10-93L610×610×9313.01000
    HMG610/15-93L915×610×9320.01500
    HMG610/20-93L1220×610×9327.02000
    HMG610/03-104Y305×305×1043.4320≤250
    HMG610/05-104Y305×610×1046.8640
    HMG610/10-104Y610×610×10413.91280
    HMG610/15-104Y915×610×10420.91920
    HMG610/20-104Y1220×610×10428.02560










    10P Pocket Air Filter Photos & Pictures 1655186628

    Frequently Asked Questions

    What is the model number of this product?

    This product uses model no.: HMG.

    What frame material options are available?

    This product uses frame: Anodized Aluminum Al.

    What service temperature can it withstand?

    This product uses temperature: Maximum 90°c in Continuous Servic.
