AUTHOR : kosafilter FROM : www.kosafilter.com ADD TIME : 2026-09-07 13:00 HITS : BELONG : COMPANY NEWS 99.995%@ 0.3 Micron Paricle Gel Seal HEPA Air Filter with Fiberglass Media Clapboard: withoutClapboard FilterNumber: 1 MediumMaterial: Fiberglass Efficiency: H13 FiltrationGrade: HEPAFilter Type: G

KOSA Company News 1825 product, KOSA
AUTHOR : kosafilter　FROM : www.kosafilter.comADD TIME : 2026-09-07 13:00　BELONG : COMPANY NEWS
  • 99.995%@ 0.3 Micron Paricle Gel Seal HEPA Air Filter with Fiberglass Media

    Clapboard:withoutClapboardFilterNumber:1MediumMaterial:FiberglassEfficiency:H13FiltrationGrade:HEPAFilterType:GelSealMini-PleatPanelFilter

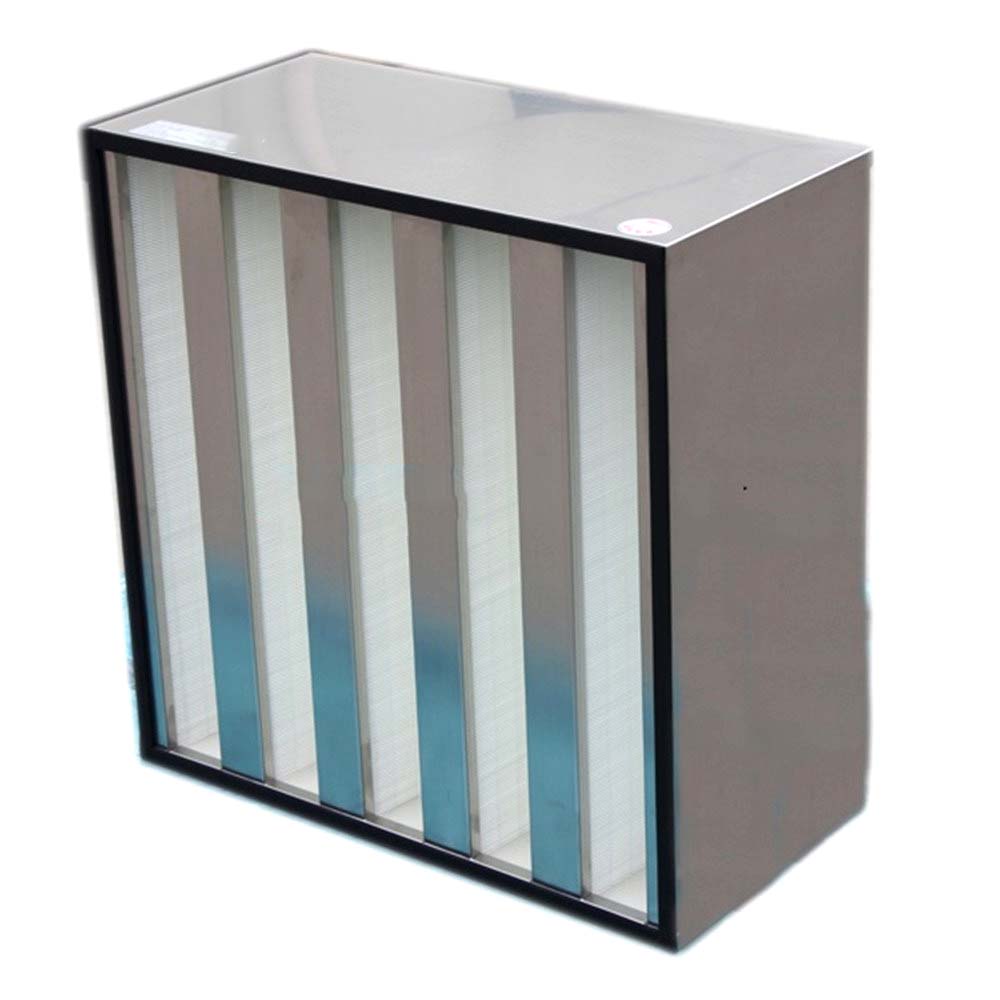

    Abs Material V Bank Plastic Frame Air Filter Photos & Pictures 1655194855

    Model NO.
    HMG
    • Structure
    L-Type Side Gel Seal, Y-Type Top Gel Seal
    Media
    Ultra-Fine Fiberglass Filter Paper
    Frame
    Anodized Aluminum Alloy
    Separator
    Hot-Melt Glue
    Temperature
    Maximum 90°c in Continuous Service
    Transport Package
    Carton / Wooden Case
    Specification
    1118X552X75MM
    Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421399090
    Production Capacity
    2500PCS

    Air Condition Fiber Glass Air Filter Bag Photos & Pictures 1655271588

    Product Description





    Application
    Suitable for electronics, pharmaceutical industry, clean room, HEPA diffuser, laminar flow devices and the occasions require ultra-high cleanliness.
    Material Instructions
    Structure: L-type side gel seal, Y-type top gel seal.
    Media: Ultra-fine fiberglass filter paper.
    Frame: Anodized aluminum alloy.
    Separator: Hot-melt glue.
    Sealant: Polyurethane.
    Temperature: Maximum 90°C in continuous service.
    Advantages
    Filter efficiency ranges from H14 to U17.
    Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
    Use special ultra-fine fiberglass paper as the filter media, good stability of filtration efficiency.
    Double side retainers, protect the filter material, good strength.
    Light in weight, compact in structure.
    Each ULPA/HEPA filter is tested according to EN1822:2009.
    Structure Drawings



    Common Specifications
    ModelDimensionsMedia Area
    (m2)    		Rated Air Flow
    (m3/h)    		Initial Pressure Drop
    (Pa)
    W×H×D (mm)
    HMG610/10-70L610×610×709.5800≤220
    HMG610/03-93L305×305×932.7250
    HMG610/05-93L305×610×935.9500
    HMG610/10-93L610×610×9313.01000
    HMG610/15-93L915×610×9320.01500
    HMG610/20-93L1220×610×9327.02000
    HMG610/03-104Y305×305×1043.4320≤250
    HMG610/05-104Y305×610×1046.8640
    HMG610/10-104Y610×610×10413.91280
    HMG610/15-104Y915×610×10420.91920
    HMG610/20-104Y1220×610×10428.02560
    KOSAFILTER makes various of other models' HMG filter which are not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve
















    Air Filter In Pocket Type (En779) Photos 1655258485

    Frequently Asked Questions

    What is the model number of this product?

    This product uses model no.: HMG.

    What frame material options are available?

    This product uses frame: Anodized Aluminum Alloy.

    What service temperature can it withstand?

    This product uses temperature: Maximum 90°c in Continuous Service.
