KOSA Company News 1821 product, KOSA
AUTHOR : kosafilter　FROM : www.kosafilter.comADD TIME : 2026-09-07 11:00　BELONG : COMPANY NEWS
  • Professional Custom Air Clean Room Work Bench

    Capacity:OnePersonAfter-salesServiceProvided:EngineersavailabletoservicemachineryoverseasCertification:ISO9001Usage:ResearchInstitute,Hospital,School,CompanyNoise:≤62DBType:HorizontalFlowCleanBench
    24X24X12 Synthetic Pocket F5. F6, F7, F8, F9 Compressed Air Hepa Filters Photos & Pictures 1655172872

    Model NO.
    HCB
    • Name
    Horizontal Clean Bench
    Control System
    Electronic Touch-Control Panel
    Two Types of Device
    Horizontal Laminar Flow & Vertical
    Transport Package
    Carton Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai, China
    HS Code
    8414809053

    100% Organic Acupuncture Non Woven Fabrics Cotton Photos 1655168703

    Product Description

    Advantages
    1.Outer casing is made of high-quality cold-rolled steel plate treated by electrostatic spray.
    2.Use high capacity and high efficiency centrifugal fan, which is with the feature of small size, large air flow, high pressure and low noise etc.
    3.Adopt ultra-thin mini pleat filter and occupies small space.
    4.Working table surface is made of stainless steel, which is durable and easy to clean.
    5.Both sides of the bench are equipped with transparent toughened glass, effectively increase day lighting.
    6.Bottom of the table is equipped with leveling feet and omni-directional wheels, easy to move and position.
    7.To ensure the ideal state of air velocity in working area, the fan flow can be regulated steplessly by electronic touch-control panel.
    8.The electric remote control interface can be equipped with ultraviolet light.
    9.Two types of device: Horizontal laminar flow & vertical
    laminar flow.
    10.Cleanliness: ISO Class 5 / FS209E Class 100 (≥0.5μm dust particles ≤ 3.5 A/l)..
    11.Air Velocity: 0.35~0.55m/s.
    12.Noise: ≤64dB(A).

     Material Instructions
    1.Casing material: Sandwich panel, cold-rolled steel or stainless steel sheet.
    2.Casing material: Cold-rolled steel or stainless steel sheet.
    3.Fan: Specialized centrifugal fan.
    4.Filtration system: Consists of high-quality primary-efficiency panel filter and mini-pleat HEPA panel filter, overall efficiency reaches 99.99%@0.3um.

    Application
    Mainly used to clean and sterile operating environment of electronics, biology, medicine, food, precision instruments, provide high level cleanliness of the local environment.

    Structure Drawings
    1.Casing material: High-quality cold-rolled steel plate treated by electrostatic spray; working table surface is of stainless steel; both sides of the bench are equipped with transparent toughened glass.
    2.Control system: Electronic touch-control panel.
    3.Two types of device: Horizontal laminar flow & vertical laminar flow.
    4.Fan: Special centrifugal fan.
    5.Filtration system: Mini-pleat HEPA filter, filter efficiency reach 99.99%@0.3um.

    Application
    Clean bench is used to electronics, biology, medicine, precision instruments and other industries require high level cleanliness. It is very universal air purification equipment aiming at partial filtration.

    Structure Drawings


     Common Specifications
    Common Specifications
    ModelNormalMedical
    HCB-1HHCB-2HHCB-1VHCB-2V
    Cleanliness LevelFS209E Class 100/ISO Class 5
    Air Stream DirectionCross Flow LaminarDown Flow Laminar
    Mean Stream Velocity0.3~0.5m/s (Adjustable)
    Noise≤62dB(A)
    Power SupplyAC, 1Ф-220V/50Hz
    Power Dissipation0.4kW0.8kW0.4kW0.8kW
    Weight160kg260kg150kg350kg
    External Dimensions
    (W×D×H)    		900×700×1450(mm)1760×700×1450 (mm)1035×700×1600 (mm)1665×700×1600 (mm)
    Working Area
    (W1×D1×H1)    		820×480×600(mm)1680×480×600 (mm)870×680×525 (mm)1510×680×525 (mm)
    HEPA
    HEPA Outfit    		820×600×50, 1pcs820×600×50, 2pcs820×600×50, 1pcs820×600×50, 1pcs
    600×600×50, 1pcs
    Fluorescent/Ultraviolet20W/20W40W/30W20W / 20W30W×2 / 30W×2
    Luminosity≥300Lx
    Seating Capacity1-man, 1-side2-man, 1-side1-man, 2-side2-man, 2-side
    Note: 1. In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
              2. KOSA makes various of other models' HCB filter not listed in above table. Please consult with us if you need.

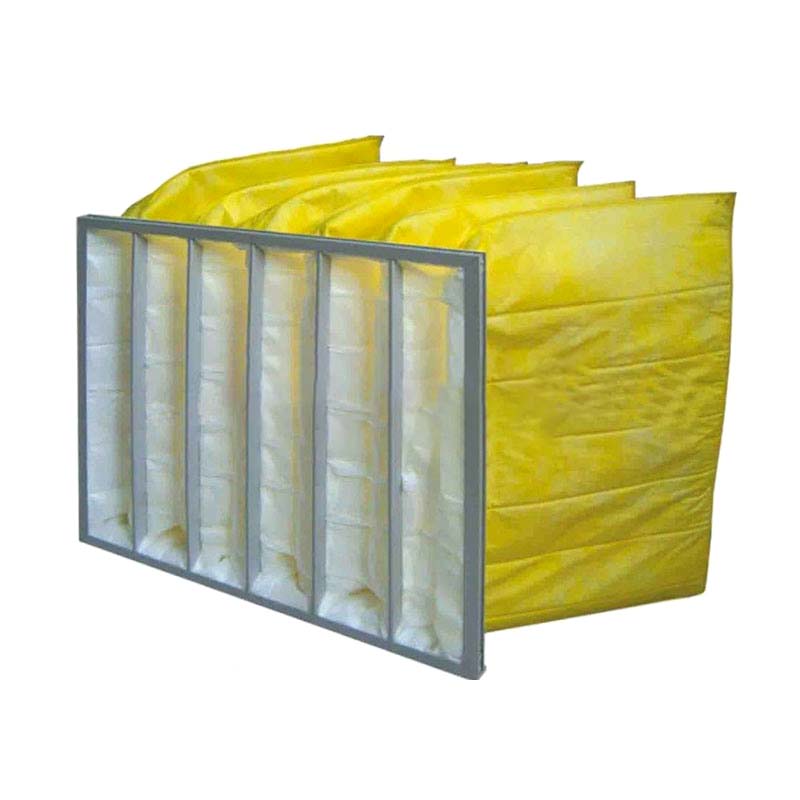

    Air Cleaning Medium Efficiency Bag Filters G3 G4 F5 F6 F7 F8 F9 Photos & Pictures 1655199690

    Frequently Asked Questions

    What is the model number of this product?

    This product uses model no.: HCB.
